| 淬硬鋼 HarenedSteel HRC56-62 | 淬硬鋼 HarenedSteel HRC>65 | 沉淀硬化不銹鋼 Preciptation hardeningStainless Steel | 普通鋼 Commom Steel HRC<25 |
 | |  | |
| 合金鋼 alloy Steel HRC<45 | 灰鑄鐵 Grey Cast Iron | 銅合金 CopperAlloy | 不銹鋼 Stainless steel |
| | | |
| 鈦合金 Titanium Alloy | 鋁合金 Aluminum si<9% | 鎳基高溫合金 Nicle Based Alloy | 復合材料 Composite Material |
| | | |
備注：非常適合
比較適合不適合
 | D≤12 | D>12 | |
| 0 -0.020 | 0 -0.030 | ||
 | d=6 | 8≤d≤10 | 12≤d≤16 |
| 0 -0.008 | 0 -0.009 | 0 -0.011 |

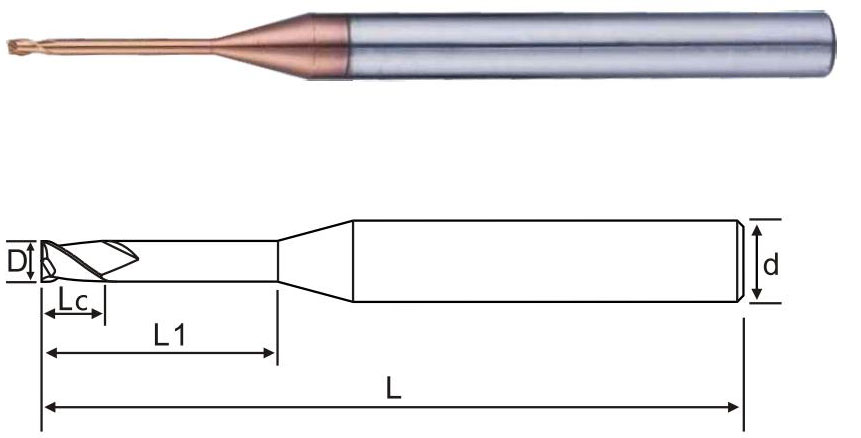

| 商品編號 Product number | 刃徑(D) Blade diameter | 刃長(Lc) Blade length | 有效長(L1) Effective long | 柄徑 Shank diameter | 全長(L) Overall length | 刃數 Flute |
| HH6802ELN0204501 | 0.2 | 0.40 | 1 | 4 | 50.0 | 2 |
| HH6802ELN0204502 | 0.2 | 0.40 | 2 | 4 | 50.0 | 2 |
| HH6802ELN0204503 | 0.2 | 0.40 | 3 | 4 | 50.0 | 2 |
| HH6802ELN0304501 | 0.3 | 0.45 | 1 | 4 | 50 | 2 |
| HH6802ELN0304502 | 0.3 | 0.45 | 2 | 4 | 50 | 2 |
| HH6802ELN0304503 | 0.3 | 0.45 | 3 | 4 | 50 | 2 |
| HH6802ELN0404502 | 0.4 | 0.60 | 2 | 4 | 50 | 2 |
| HH6802ELN0404504 | 0.4 | 0.60 | 4 | 4 | 50 | 2 |
| HH6802ELN0404506 | 0.4 | 0.60 | 6 | 4 | 50 | 2 |
| HH6802ELN0504502 | 0.5 | 0.70 | 2 | 4 | 50 | 2 |
| HH6802ELN0504503 | 0.5 | 0.70 | 3 | 4 | 50 | 2 |
| HH6802ELN0504504 | 0.5 | 0.70 | 4 | 4 | 50 | 2 |
| HH6802ELN0504506 | 0.5 | 0.70 | 6 | 4 | 50 | 2 |
| HH6802ELN0604502 | 0.6 | 0.90 | 2 | 4 | 50 | 2 |
| HH6802ELN0604503 | 0.6 | 0.90 | 3 | 4 | 50 | 2 |
| HH6802ELN0604504 | 0.6 | 0.90 | 4 | 4 | 50 | 2 |
| HH6802ELN0604506 | 0.6 | 0.90 | 6 | 4 | 50 | 2 |
| HH6802ELN0704504 | 0.7 | 1.00 | 4 | 4 | 50 | 2 |
| HH6802ELN0704506 | 0.7 | 1.00 | 6 | 4 | 50 | 2 |
| HH6802ELN0804503 | 0.8 | 1.20 | 3 | 4 | 50 | 2 |
| HH6802ELN0804504 | 0.8 | 1.20 | 4 | 4 | 50 | 2 |
| HH6802ELN0804506 | 0.8 | 1.20 | 6 | 4 | 50 | 2 |
| HH6802ELN0804508 | 0.8 | 1.20 | 8 | 4 | 50 | 2 |
| HH6802ELN08045010 | 0.8 | 1.20 | 10 | 4 | 50 | 2 |
| HH6802ELN1004505 | 1.0 | 1.50 | 5 | 4 | 50 | 2 |
| HH6802ELN1004506 | 1.0 | 1.50 | 6 | 4 | 50 | 2 |
| HH6802ELN1004508 | 1.0 | 1.50 | 8 | 4 | 50 | 2 |
| HH6802ELN10045010 | 1.0 | 1.50 | 10 | 4 | 50 | 2 |
| HH6802ELN10045012 | 1.0 | 1.50 | 12 | 4 | 50 | 2 |
| HH6802ELN10045016 | 1.0 | 1.50 | 16 | 4 | 50 | 2 |
| HH6802ELN150450B | 1.5 | 2.50 | 8 | 4 | 50 | 2 |
| HH6802ELN15045010 | 1.5 | 2.50 | 10 | 4 | 50 | 2 |
| HH6802ELN15045012 | 1.5 | 2.50 | 12 | 4 | 50 | 2 |
| HH6802ELN15045016 | 1.5 | 2.50 | 16 | 4 | 50 | 2 |
| HH6802ELN15045018 | 1.5 | 2.50 | 18 | 4 | 50 | 2 |
| HH6802ELN2004508 | 2.0 | 4.00 | 8 | 4 | 50 | 2 |
| HH6802ELN20045010 | 2.0 | 4.00 | 10 | 4 | 50 | 2 |
| HH6802ELN20045012 | 2.0 | 4.00 | 12 | 4 | 50 | 2 |
| HH6802ELN20045016 | 2.0 | 4.00 | 16 | 4 | 50 | 2 |
| HH6802ELN20045018 | 2.0 | 4.00 | 18 | 4 | 50 | 2 |
| HH6802ELN20045020 | 2.0 | 4.00 | 20 | 4 | 50 | 2 |

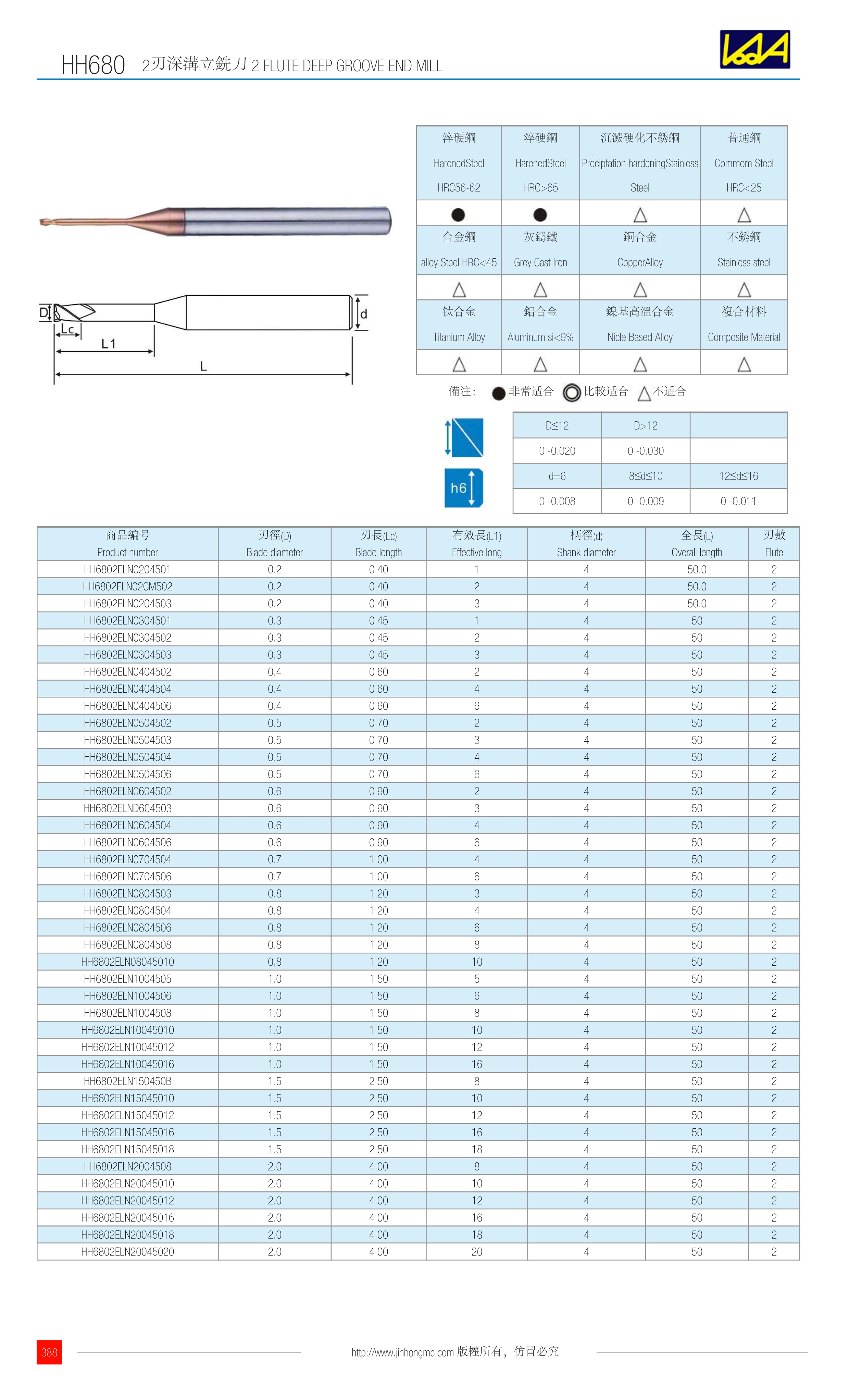

訂購：hh680-11 2刃深溝立銑刀
